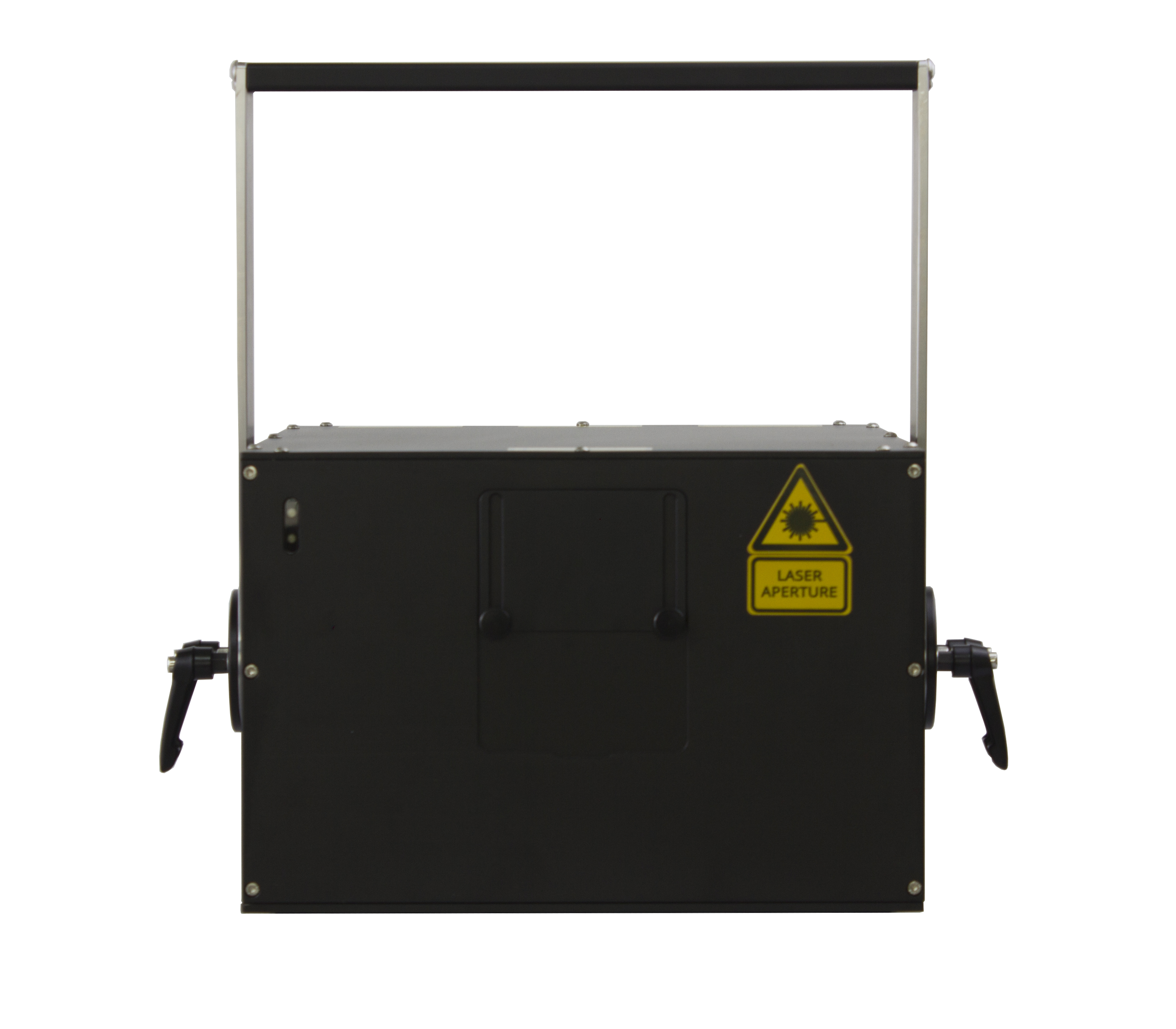

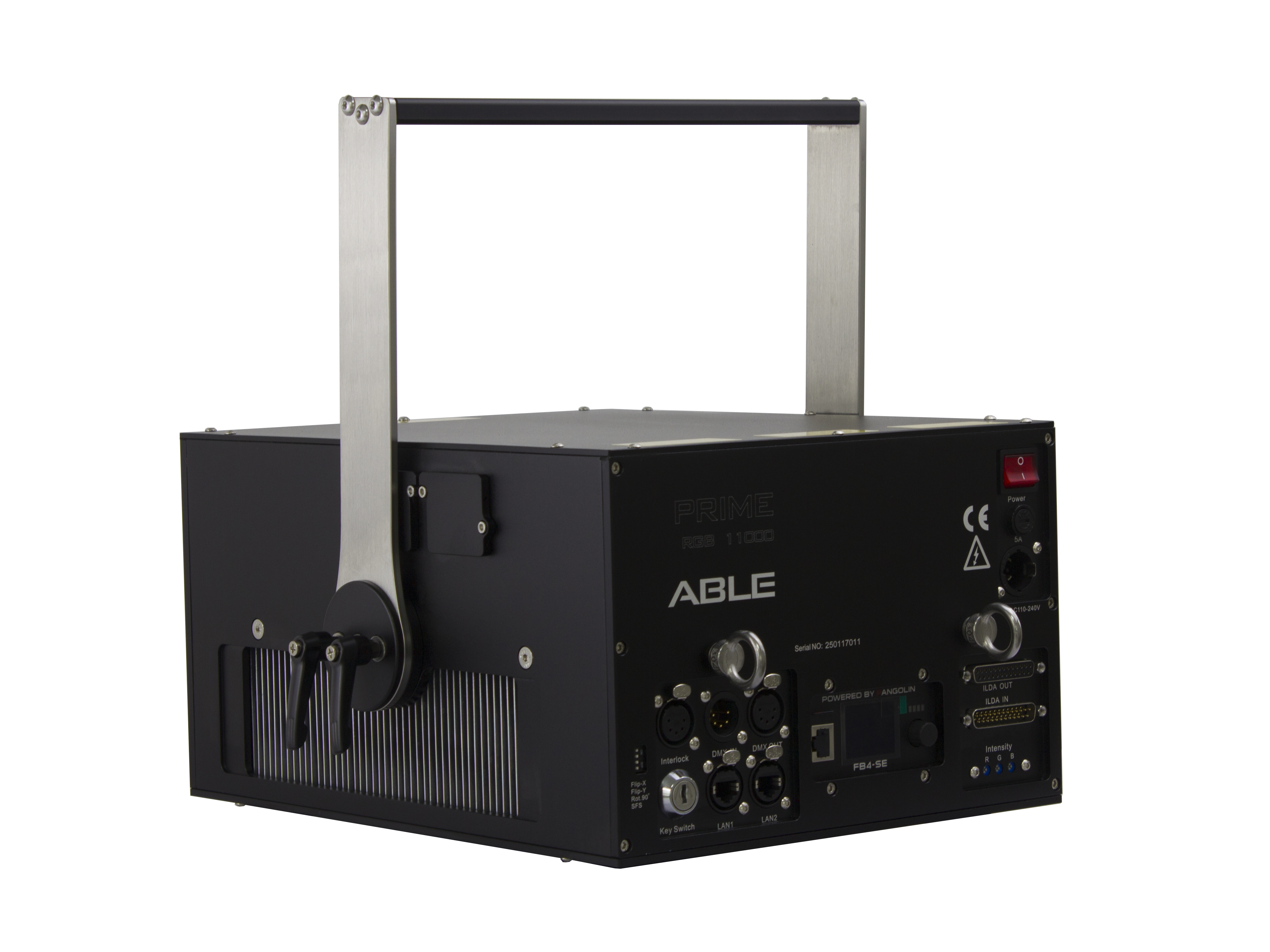

PRIME RGB 11000

Specifications & Features

The perfect combination of power and sharpness

Download Data Sheet

PRIME RGB 11000 is a high-end powerful full-color laser projector that specifically designed for large-scale indoor and small to medium outdoor shows as well as installation projects.



Specifications

Light Source

Red :       3060 mW @ 637nm               Single Mode Direct-Inject diodes

Green :    4000 mW @ 520nm              Multi-Mode Direct-Inject diodes

Blue :      4000 mW @ 445nm               Multi-Mode Direct-Inject diodes

                                                               (462nm on-request)


Total Output @ Projector Window: 9000mW~10500mW

Beam Diameter(Projector Window) : ~5 mm

Divergence (Full angle) :  <0.9 mrad (Full angle)


Modulation : Analog 50KHZ

Laser Class :  Class IV


Scanner

Galvo : 40K (EMS 8000 60K upon request)
Scan Angle : 60° Max (Optical)

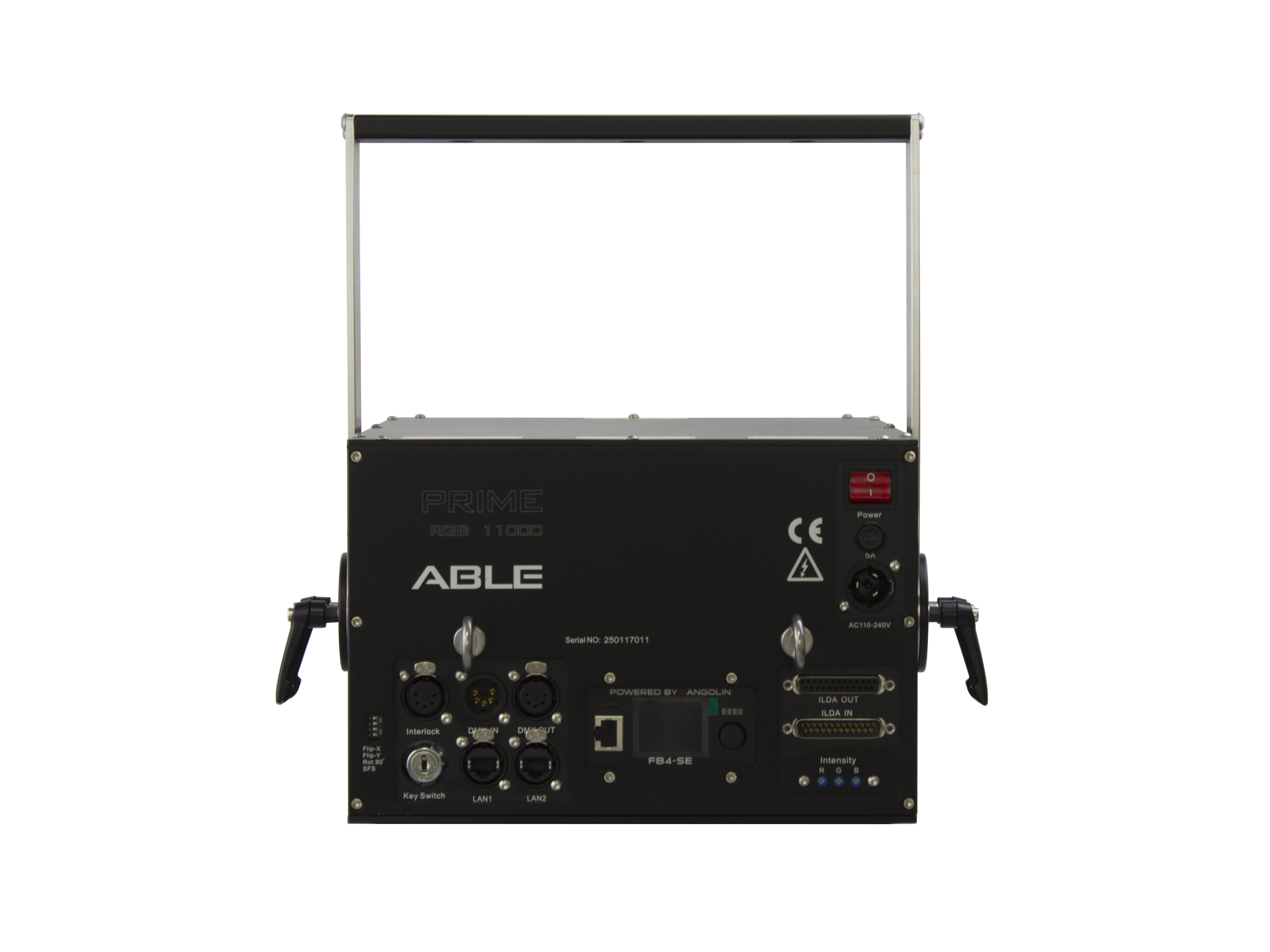

Interfaces & Controls

Control :  ILDA in (Differential) , ILDA out
Safety :  Key Switch , FDA Scan-safe Switch
Remote Interlock :  5 pins XLR
Scan Image Invert :  Invert – X , Invert – Y, Rotate Z 90 degree
Color adjustment :  Intensity R, G, B (0-100%)
Mains : Neutrik PowerCon®


Optional Components

Controller :  Moncha.net   (upon request)

                  Pangolin FB4 (upon request)


Thermal Control

Cooling :  TEC Peltier Elements
Ventilation : 70mm Low noise fan * 3


Electric

Operating Voltage :  AC 110V-240V
Power Consumption: 450W Max


Physical

L * W * H :  337mm * 257mm * 177mm (Without Yoke, Without feet)
Weight : 16kg (Without Yoke)
Housing Materials :  Black Anodized Aluminum
IP grade :  IP54
Packaging :  Flight case


Compliance

Compliance:  FDA/CDRH, CE, RoHS


Warranty

Warranty: 24 months parts and labor
