PRIME RGB 18000 / 15000

Specifications & Features



Download Data Sheet

PRIME RGB 18000 /PRIME RGB 15000 is a powerful full-color laser projector with compact size.  Its easy - handling and simple structure made it an ideal device for either mobile shows or permanent installations



Specifications

Light Source

Model
 PRIME RGB 18000
PRIME RGB 15000

Red :
4440 mW @ 637nm
3600 mW @ 637nm
Single Mode Direct-Inject diodes
Green :
6000 mW @ 520nm
5100 mW @ 520nm
Multi-Mode Direct-Inject diodes
Blue :
8000 mW @ 445nm
6400 mW @ 445nm
Multi-Mode Direct-Inject diodes

Total Output

@ Projector Window:

14500 ~ 15200 mW
12800 ~ 13500 mW



Beam Diameter(Projector Window) : < 6.0 mm

Divergence (Full angle) :  < 0.9 mrad (Full angle)

Modulation : Analog 50KHZ

Laser Class :  Class IV


Scanner

Galvo : 35K (EMS 8000 40K upon request)
Scan Angle : 60° Max (54° when using EMS 8000 )


Interfaces & Controls

Control :  ILDA in (Differential) , ILDA out
Safety :  Key Switch , FDA Scan-safe Switch
Remote Interlock :  5 pins XLR
Scan Image Invert :  Invert – X , Invert – Y , Rotate Z 90°
Color adjustment :  Intensity R, G, B (0-100%)
Mains : Neutrik PowerCon®


Optional Components

Controller :  Pangolin FB4 (upon request)
Scanner: EMS 8000 upon request


Thermal Control

Cooling :  TEC Peltier Elements
Ventilation : 60mm Low noise fan * 4


Electric

Operating Voltage :  AC 110V-240V
Power Consumption: 560W Max


Physical

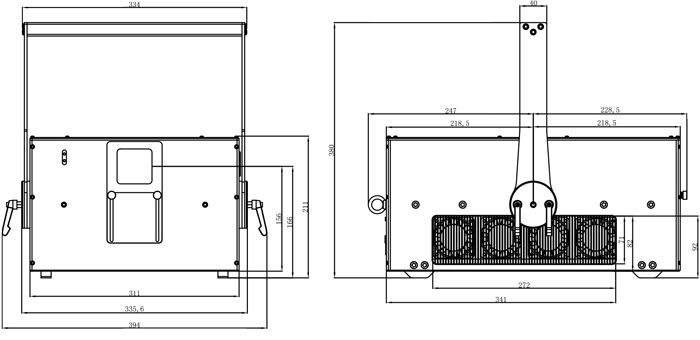

L * W * H :  394mm * 282mm * 199mm (Without Yoke, Without feet)
Weight : 26kg
Housing Materials :  Black Anodized Aluminum
IP grade :  IP52
Packaging :  Flight case


Compliance

Compliance:  FDA/CDRH, CE, RoHS


Warranty

Warranty: 24 months parts and labor
