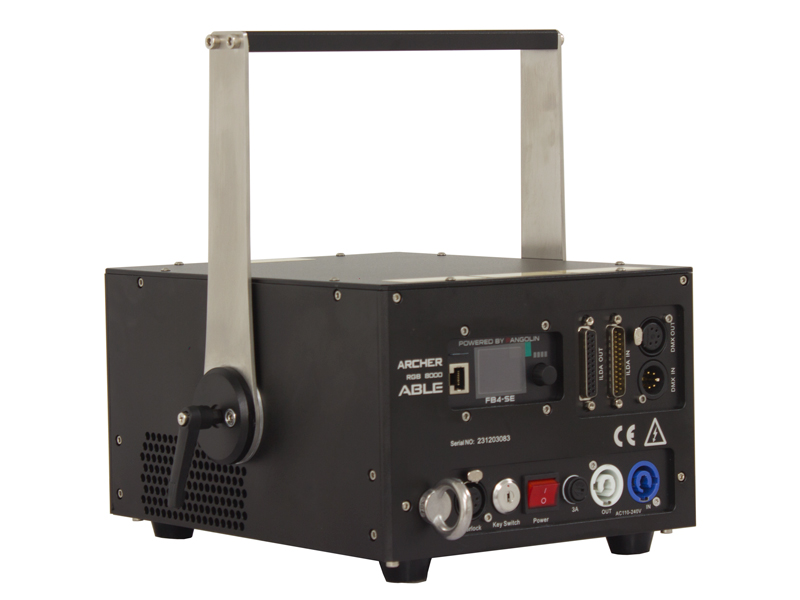

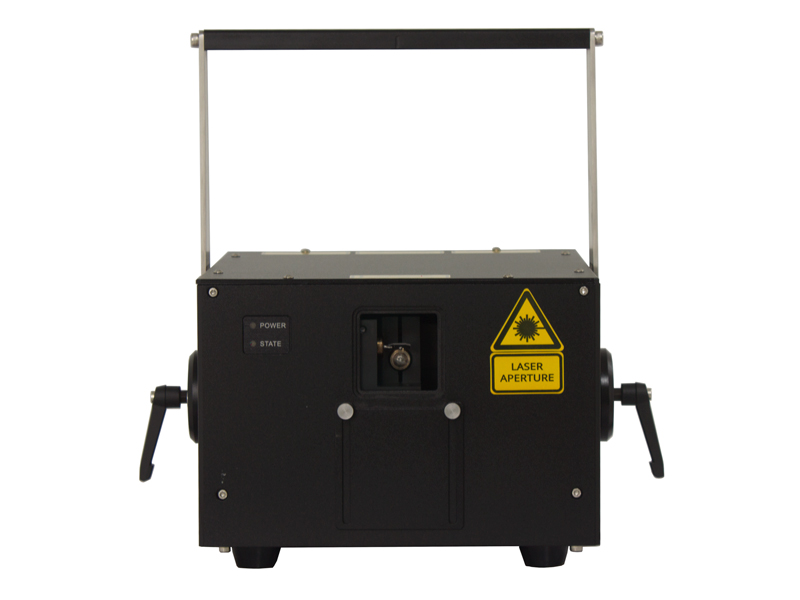

ARCHER RGB 6000 / 8000

Specifications & Features

ARCHER­ RGB 6000 / 8000 is a high cost-performance full­ color laser projector that is ideal for small mobile shows and venues like club & bars.

Download Data Sheet

Specifications


Light Source


Model
ARCHER RGB 6000
ARCHER RGB 8000
Red :
1200 mW @ 638nm
1800 mW @ 638nm
Green :
2000 mW @ 525nm
3000 mW @ 525nm
Blue :
3000 mW @ 450nm
3500 mW @ 450nm

Total Output @

Projector Window:

5700 ~ 6000 mW
7800 ~ 8200 mW



Beam Diameter : ~ 5mm

Divergence (Full angle) :  ~ 1.2mrad

Modulation : Analog 50KHZ

Laser Class :  Class IV


Scanner

Galvo : 40kpps @ 8° ILDA test pattern
Scan Angle : 60° Max (Optical)

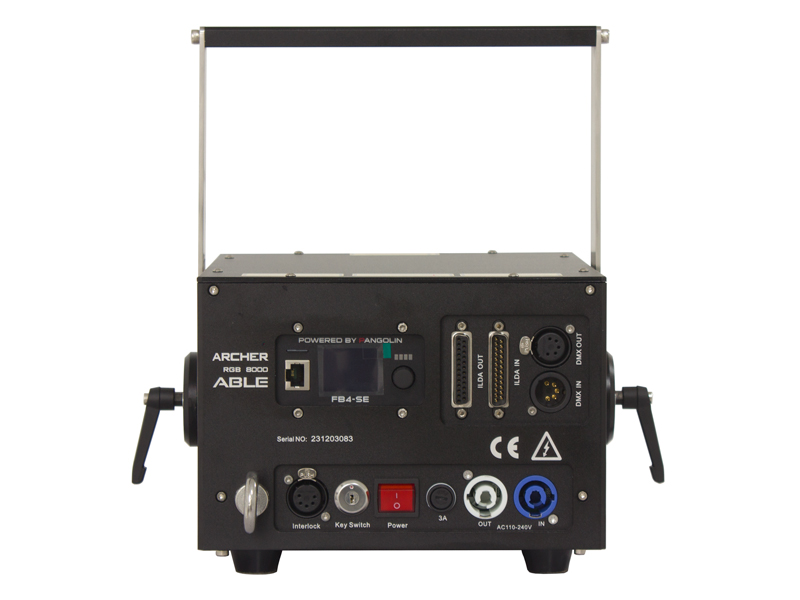

Interfaces & Controls

Control :  ILDA in (Differential) , ILDA out
Safety :  Key Switch
Remote Interlock :  5-pins XLR


Optional Components

Controller :  Moncha.lite 2 or Pangolin FB4 (upon request)
Window Protection :  Slide-type window Cover


Electric

Operating Voltage :  AC 110V-240V
Power Consumption: 350W Max


Physical

L * W * H :  319mm * 240mm * 162mm (Without Yoke)
Weight : 8.3 kg (Without Yoke)
Housing Materials :  Black Anodized Aluminum
IP grade :  IP52
Packaging :  Carton package


Compliance

Compliance:  FDA/CDRH, CE


Warranty

Warranty:  24 months after delivery
