ARCHER RGB 20000 /30000 /40000

Specifications & Features

Power on a budget

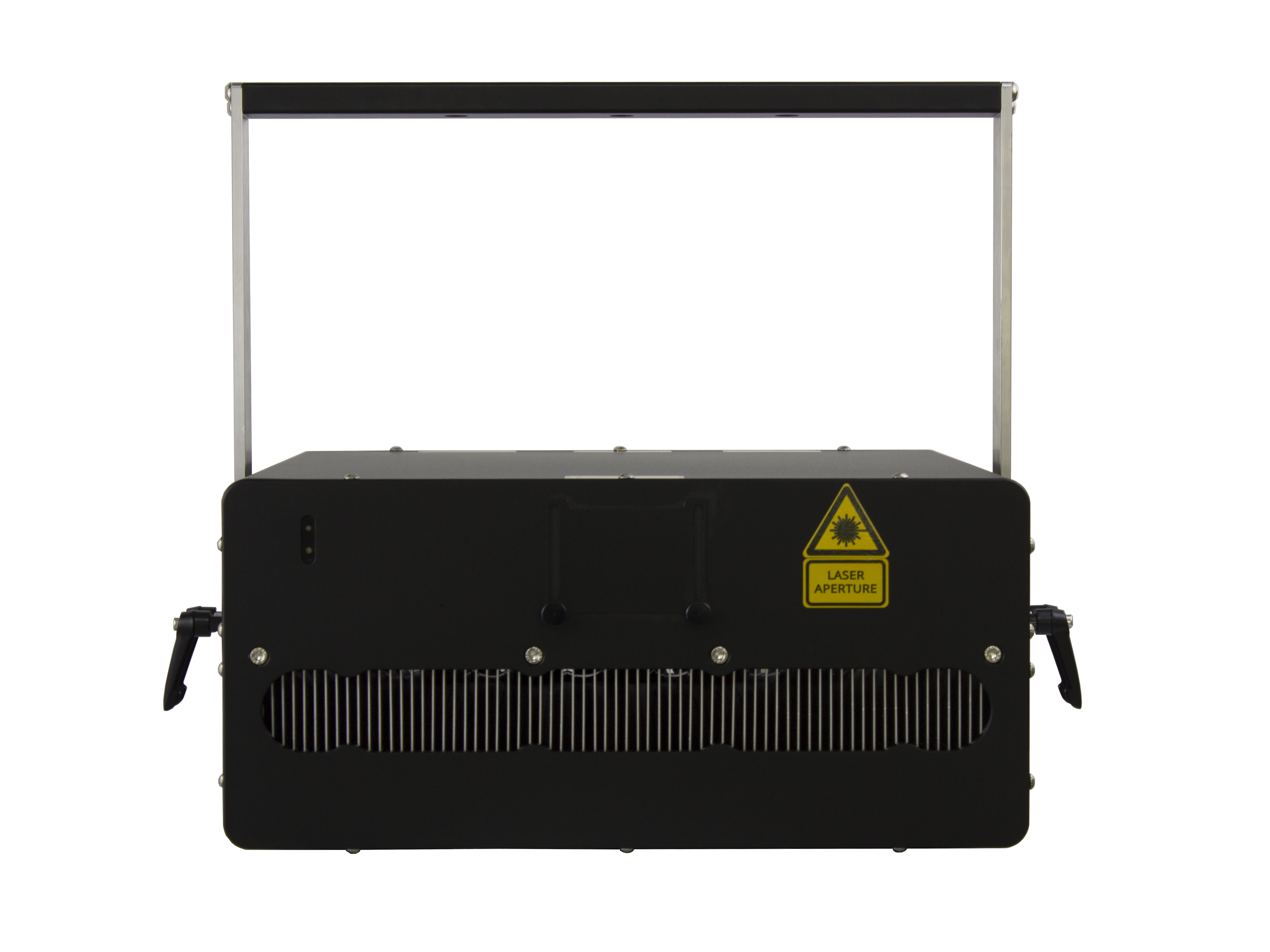

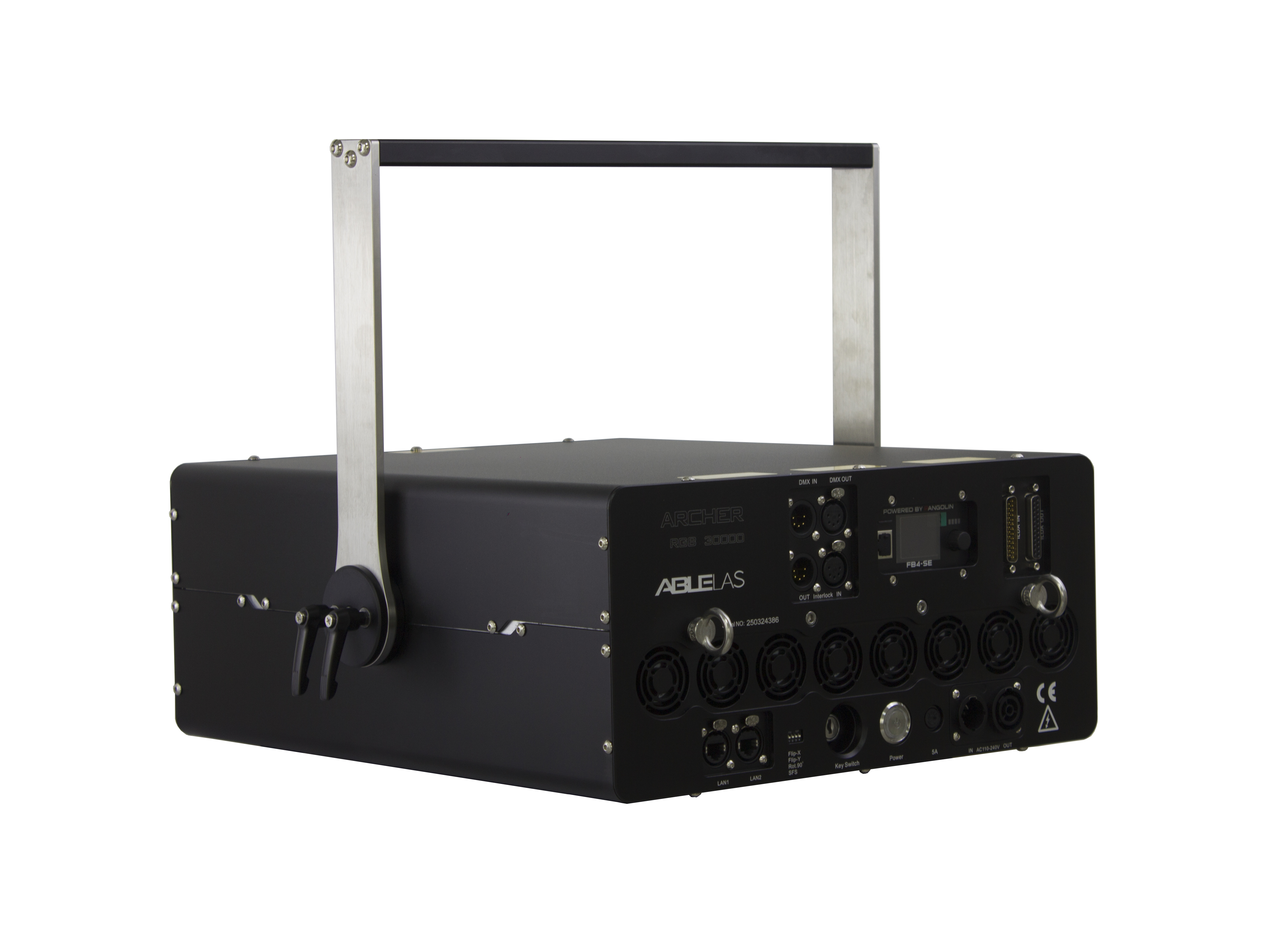

ARCHER RGB 20000 /30000 /40000 is a high cost-performance full-color laser projector which could meet your requirement for any Mega-scale outdoor laser shows and installations. Its new module technology gives it the capability of maintenance-free on the RGB alignment.

Seeking for immense power but on a budget? Go with ARCHER RGB 20000 /30000 /40000!

Spec Power @ Light Source

	ARCHER RGB 20000	ARCHER RGB 30000	ARCHER RGB 40000
R:	6000 mw@638nm	8000 mw@638nm	10000 mw@638nm
G:	6000 mW@525nm	10000 mW@525nm	13500 mW@525nm
B:	8000 mW@450nm	12000 mW@450nm	16500 mW@450nm

Total Output @ Projector Window

ARCHER RGB 20000	ARCHER RGB 30000	ARCHER RGB 40000
18000 – 21000mW	28000 – 32000mW	36000 – 40000mW

Beam Profile

6.0mm * 7.5mm	6.0mm * 7.5mm	7.5mm * 8.5mm
< 1.3mrad	< 1.3mrad	< 1.5mrad

Modulation : Analog 50KHZ

Laser Class : Class IV

Scanner

Galvo : 30Kpps @ 8° ILDA test pattern (EMS 9000 digital scanner 35K upon request)
Scan Angle : 60° Max Optical ( 54° Max on EMS 9000)

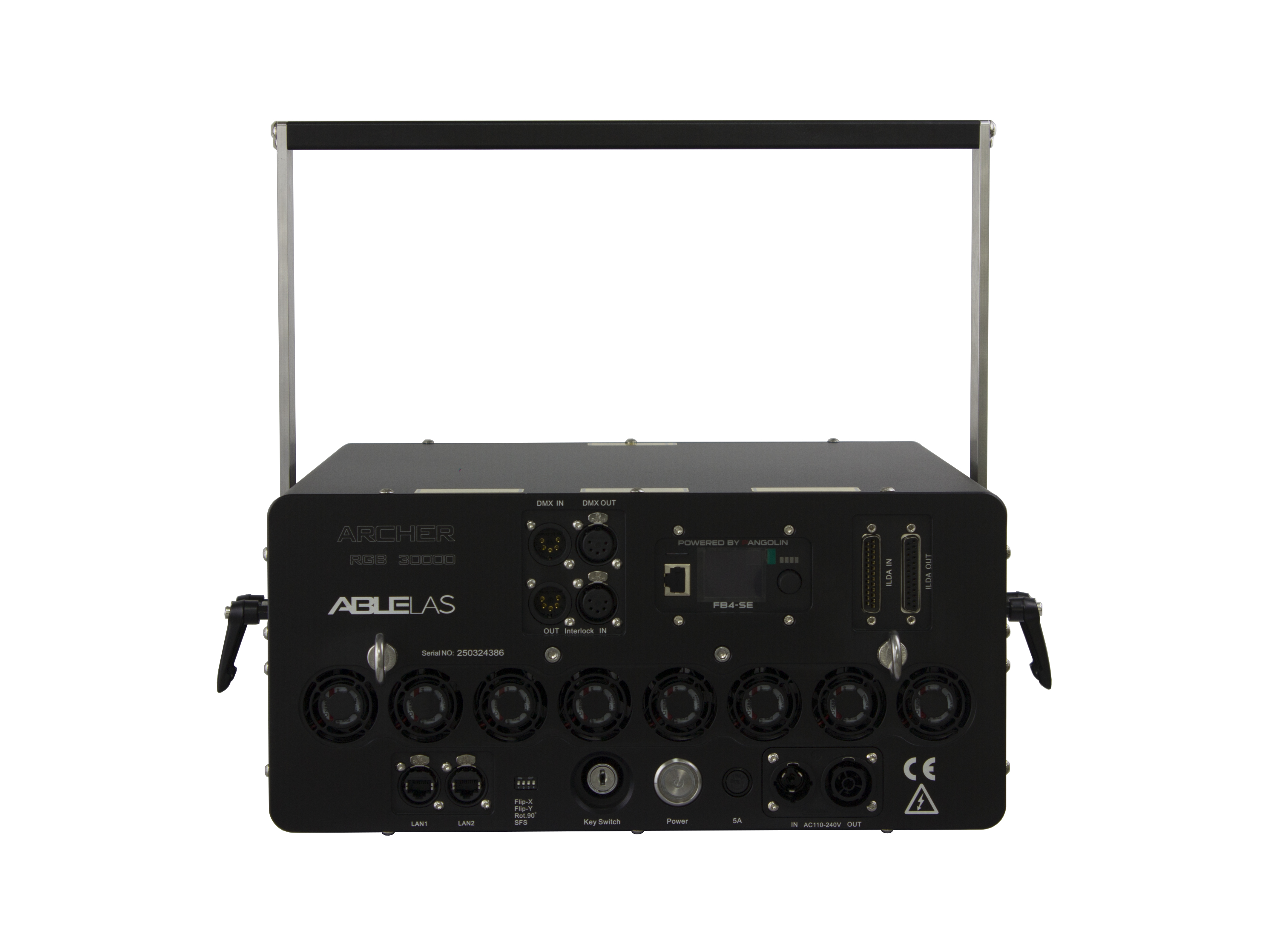

Interfaces & Controls

Control : ILDA in (Differential) , ILDA out
Safety : Key Switch , Scan-Fail-safe Switch
Remote Interlock : 5 pins XLR
Scan Image Invert : Invert – X , Invert – Y
Color adjustment : Intensity R, G, B (0-100%)
Mains : Neutrik PowerCon®

Optional Components

Embedded Controller : Pangolin FB4 (upon request)
Scanner : EMS 9000 35k

Thermal Control

Cooling : Active Cooling / Heating by TEC Peltier Elements
Ventilation : 40mm Low noise fan * 8

Electric

Operating Voltage : AC 110V-240V
Power Consumption: 850W Max

Physical

L * W * H : 442mm * 374mm * 182mm (Without Yoke)
Weight : 28kg (Without Yoke)
Housing Materials : Black Anodized Aluminum
IP grade : IP52
Packaging : Flight case / Peli Case

Compliance

Compliance: FDA/CDRH, CE

Warranty

Warranty: 24 months parts and labor
