High-performance beam on a budget

ARCHER RGB 12000 is a high cost-performance full color laser projector, its light weight & high cost-­performance ratio make it a perfect solution for large indoor venue or small outdoor shows.

Specifications

Light Source

Red :        3300 mW @ 638nm    Multi-Mode Direct-Inject diodes

Green :    3500 mW @ 529nm    Multi-Mode Direct-Inject diodes

Blue :       5500 mW @ 462nm    Multi-Mode Direct-Inject diodes

Total Output @ Projector Window: 11500mW~12500mW

Beam Diameter(Projector Window) :  5.5 mm

Divergence (Full angle) : ~ 1.2 mrad (Full angle)

Modulation : Analog 50KHZ

Laser Class :  Class IV

Scanner

Galvo : 40kpps@8° ILDA test pattern
Scan Angle : 60° Max (Optical)

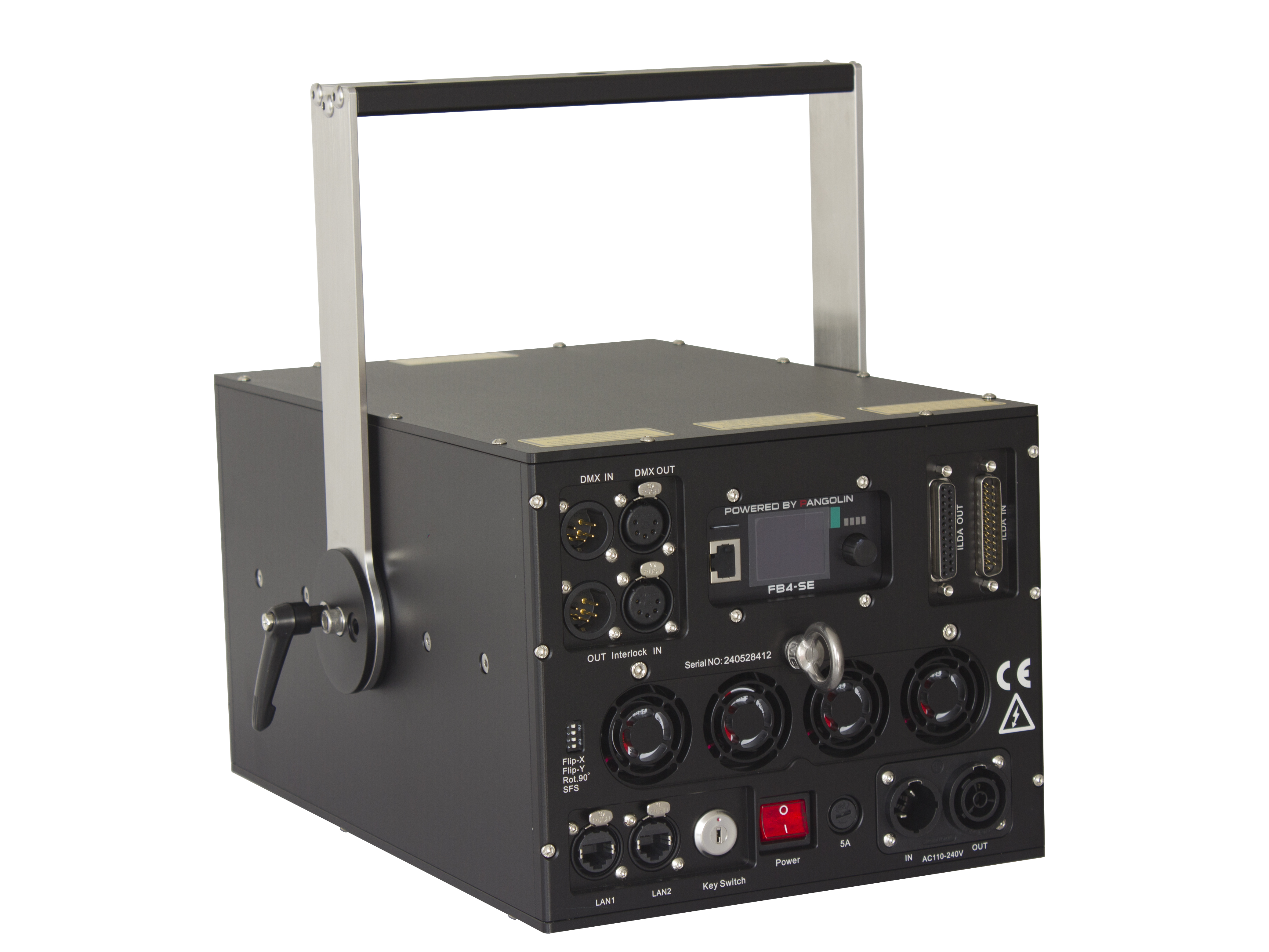

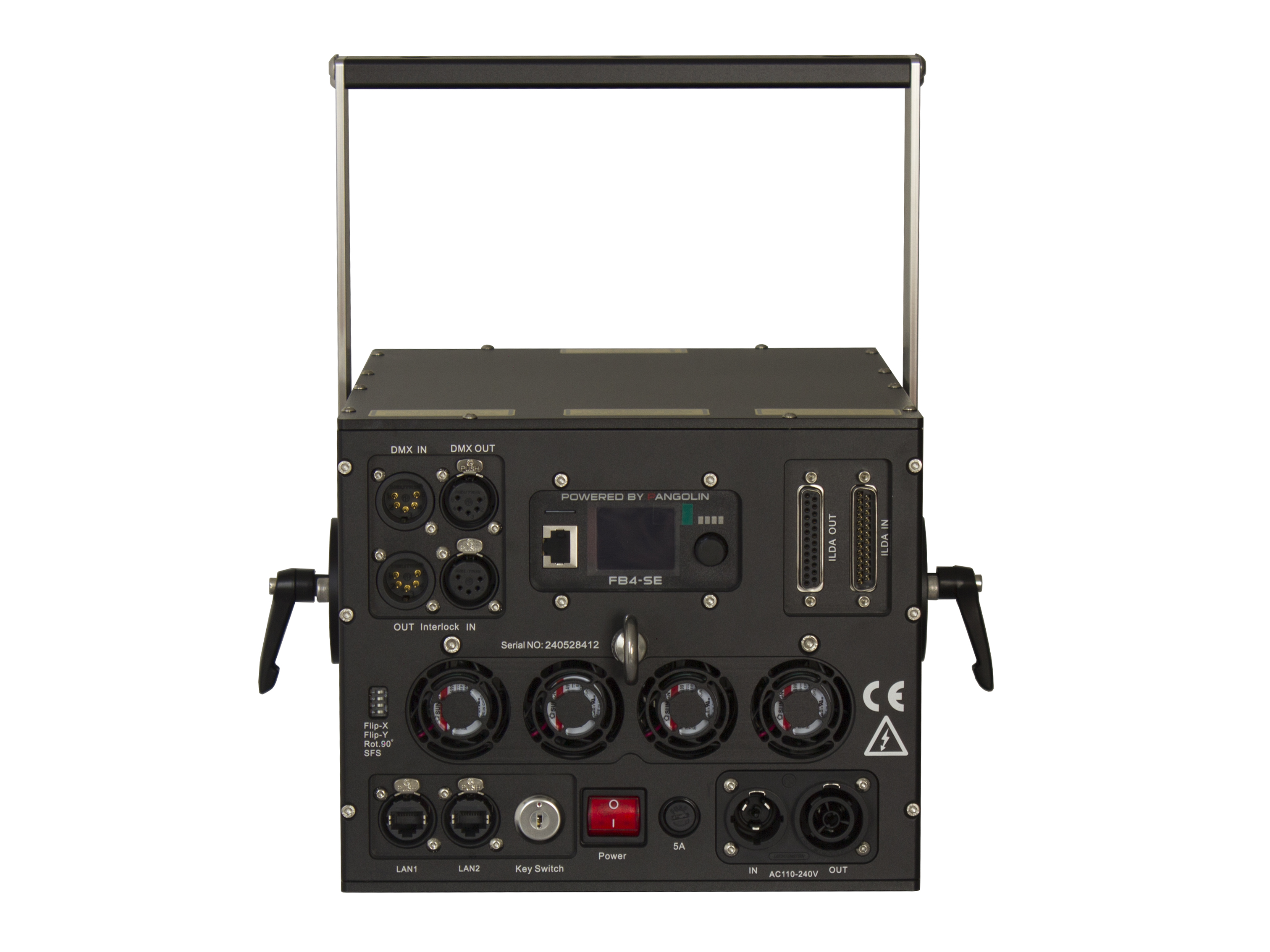

Interfaces & Controls

Control :  ILDA in (Differential) , ILDA out
Safety :  Key Switch , FDA Scan-safe Switch
Remote Interlock :  5 pins XLR
Scan Image Invert :  Invert – X , Invert – Y, Rotate 90°
Color adjustment :  Intensity R, G, B (0-100%)
Mains : Neutrik PowerCon®

Optional Components

Embedded Controller :  Pangolin FB4 (upon request)

Thermal Control

Cooling :  TEC Peltier Elements
Ventilation : 40mm Low noise fan * 4

Electric

Operating Voltage :  AC 110V-240V
Power Consumption: 350W Max

Physical

L * W * H :  376mm * 246mm * 190mm (Without Yoke, Without feet)
Weight : 15 kg (Without Yoke)
Housing Materials :  Black Anodized Aluminum
IP grade :  IP52
Packaging :  Flight case

Compliance

Compliance:  FDA/CDRH, CE

Warranty

Warranty:  24 months parts and labor
