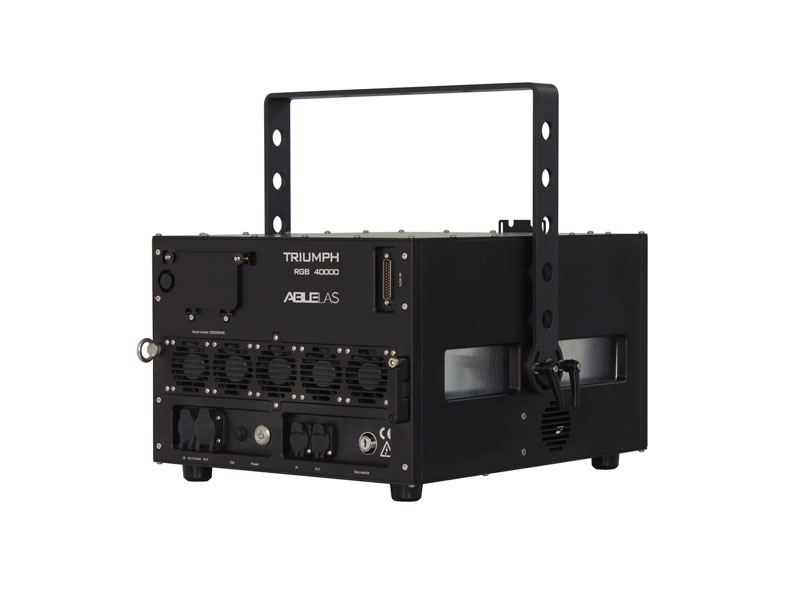

The TRIUMPH RGB IP65 rated family !

TRIUMPH RGB 30000/40000 IP65 is a German design full-color laser projector. It designed for outdoor

environments, featuring a housing that meets IP65 standards, which ensures it is completely waterproof

and dustproof. It provides a comprehensive solution for permanent installations in most outdoor environments,

such as large-scale outdoor shows, events, mega clubs, rocking arenas and stadiums, and extensive outdoor festivals.

Spec Power @ Light Source

Total Output @ Projector Window

Beam Profile

Modulation : Analog 50KHZ

Laser Class :  Class IV

Scanner

Galvo : 30Kpps @ 8° ILDA test pattern (EMS 9000 digital scanner 35K@6° upon request)
Scan Angle : 60° Max Optical ( 54° Max on EMS 9000)

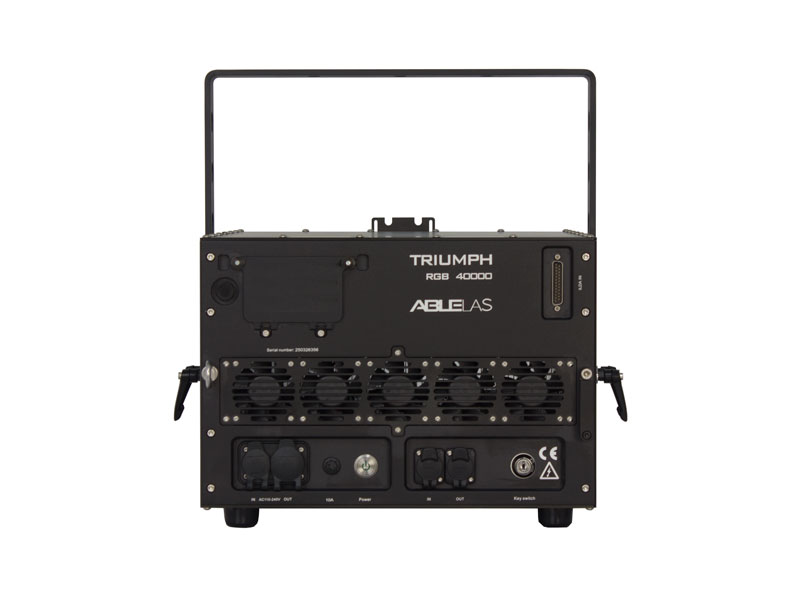

Interfaces & Controls

Control :  ILDA in (Differential)
Safety :  Key Switch, FDA Scan-safe Switch
Remote Interlock :  5/8 pins from Ethercon RJ45
Mains : Neutrik PowerCon® TRUE1 TOP

Optional Components

Embedded Controller :  Pangolin FB4 (upon request)
Scanner :  EMS 9000 (35k@6° ILDA test pattern)

Thermal Control

Cooling :  Active Cooling / Heating by TEC Peltier Elements
Ventilation : 60mm IP68 thermal-controlled fan * 7

Electric

Operating Voltage :  AC 110V-240V
Power Consumption: 1000W Max

Physical

L * W * H :  448mm * 385mm * 246mm (Without Yoke)
Weight : 35kg (With Yoke)
Housing Materials :  Black Anodized Aluminum
IP grade :  IP65
Packaging :  Flight case

Compliance

Compliance:  FDA/CDRH, CE

Warranty

Warranty: 24 months parts and labor
