PANGOLIN FB4 NODE

Specifications & Features

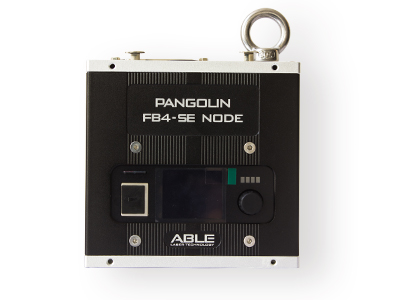

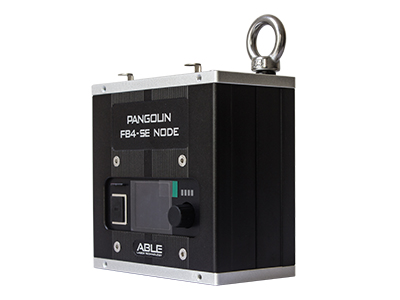

FB4 NODE re-integrates the FB4 circuit and all connection interfaces into a compact unit, allowing easy handling and convenient operation of this most popular laser controller of the day.

Download Data Sheet

* All interfaces located on top panel allowing convenient operation and cable routing, also possible for rigging on the truss.



Interfaces

ILDA out : DB-25 pins
Ethernet: Neutrik Ethercon
DMX in and out :XLR 5-pins


Optional Parts

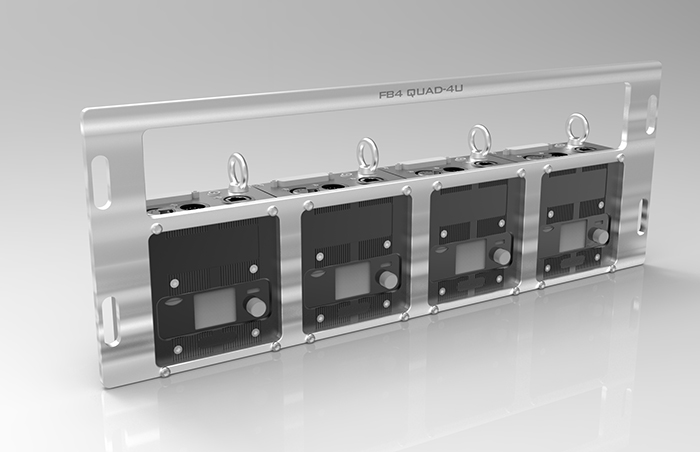

QUAD-4U Rack Mount Panel

Electric

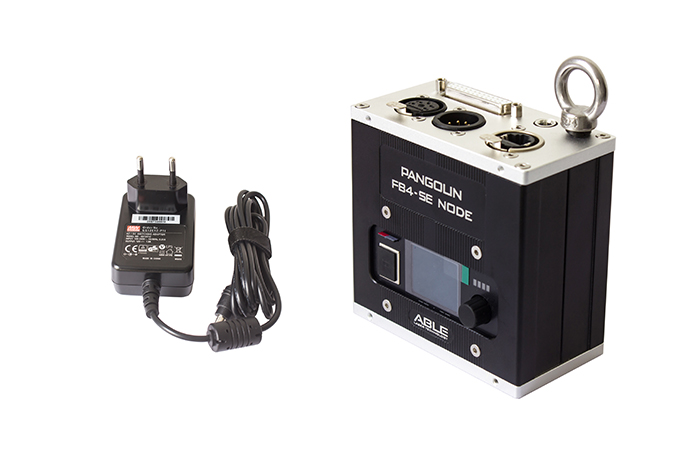

Hi-Qulity AC-DC Power Adapter   :   12VDC(Served in the package)


Physical

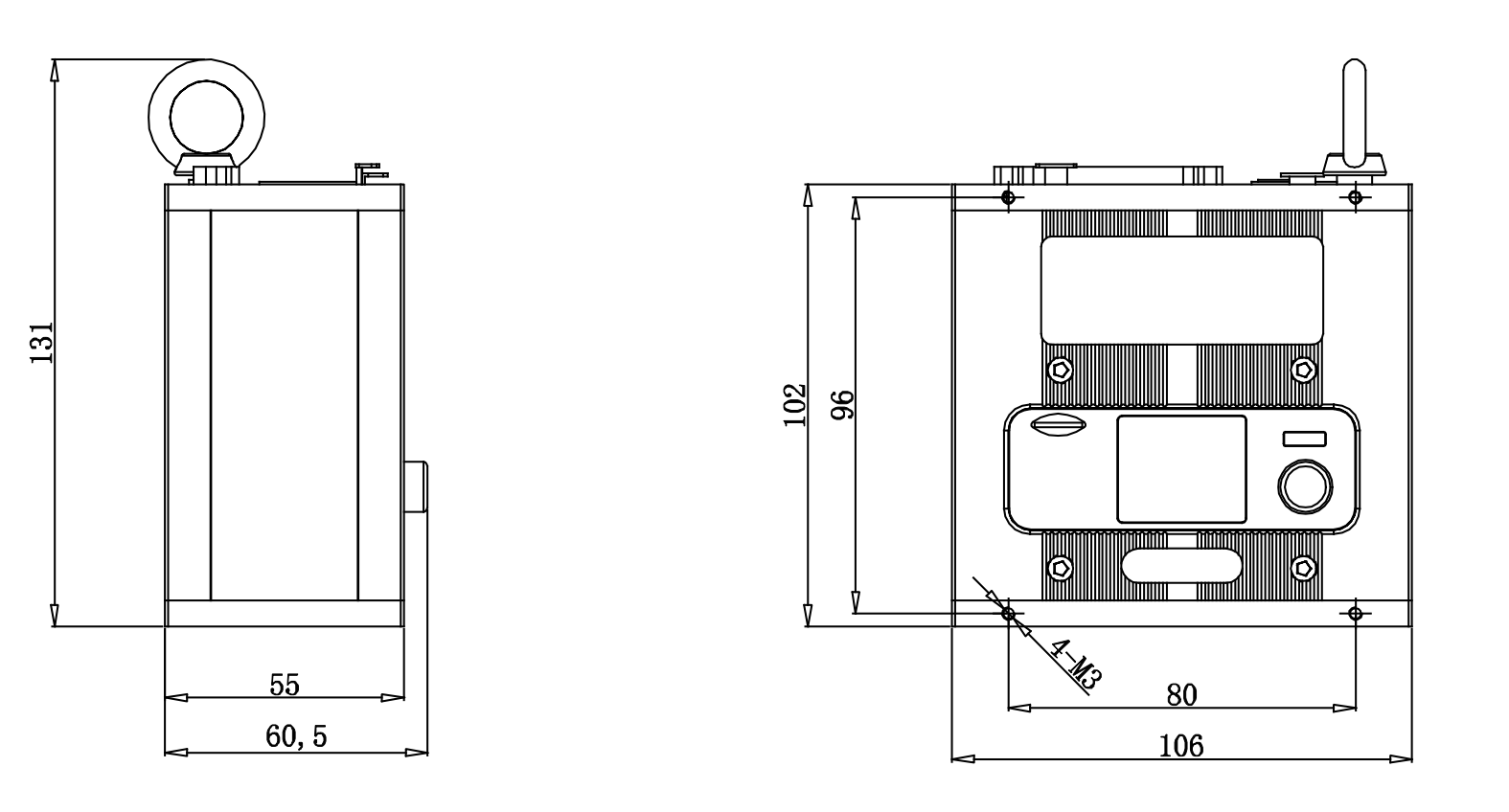

L * W * H :  106mm * 60.5mm * 102mm (Without safety hook)
Housing Materials : Anodized Aluminum


Download Data Sheet
